In Logic Apps you can create a connector to an Azure KeyVault and connect in two ways:

• connect with service principal
• connect with sign in

Connect with Service Principal

To connect with a service principal, you need to specify a connection name, vault name, tenantId, clientId and clientSecret from a registered app in Azure Active Directory.

To retrieve the tenantId, clientId and clientSecret, follow these steps to do an app registration in Active Directory:

1. Browse to Azure Active Directory > App registrations > New registration.
2. Fill in the data and click Register.
3. Open the registered application and browse to Overview.

4. These are your clientId and tenantId parameter values.
5. Browse to Certificates & secrets > New client secret.
6. Copy the value of the client secret. This is for the clientSecret parameter.

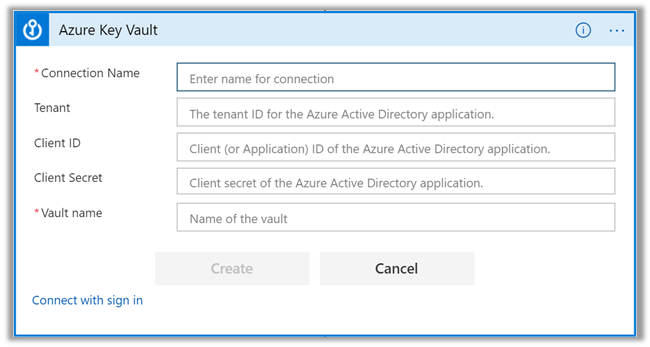

When creating the connector in the Logic Apps Designer, following properties need to be filled in:

The corresponding ARM template:

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "keyvaultName": {
            "type": "string"
        },
        "appId": {
            "type": "string"
        },
        "appSecret": {
            "type": "string"
        },
        "tenantId": {
            "type": "string"
        }
    },
    "variables": {
        "location": "[resourceGroup().location]",
        "subscriptionId": "[subscription().subscriptionId]",
        "keyvaultApiId": "[concat('/subscriptions/', variables('subscriptionId'), '/providers/Microsoft.Web/locations/', variables('location'),'/managedApis/keyvault')]"
    },
    "resources": [
        {
            "type": "Microsoft.Web/connections",
            "apiVersion": "2016-06-01",
            "name": "[parameters('keyvaultName')]",
            "location": "[variables('location')]",
            "properties": {
                "displayName": "[parameters('keyvaultName')]",
                "customParameterValues": {
                },
                "api": {
                    "id": "[variables('keyvaultApiId')]"
                },
                "parameterValues": {
                    "token:clientId": "[parameters('appId')]",
                    "token:clientSecret": "[parameters('appSecret')]",
                    "token:TenantId": "[parameters('tenantId')]",
                    "token:grantType": "client_credentials",
                    "vaultName": "[parameters('keyvaultName')]"
                }
            }
        }
    ],
    "outputs": {
    }
}

Connect with sign in

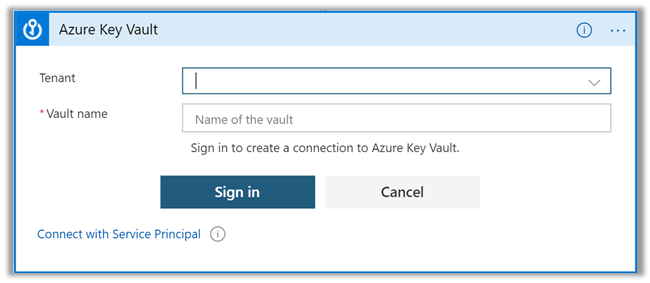

When using the connect with sign in method to authenticate to the KeyVault, the Logic Apps Designer needs only the tenant and vault name:

You then need to sign in with a valid account.

The corresponding ARM template:

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "keyvaultName": {
            "type": "string"
        },
        "tenantId": {
            "type": "string"
        }
    },
    "variables": {
        "location": "[resourceGroup().location]",
        "subscriptionId": "[subscription().subscriptionId]",
        "keyvaultApiId": "[concat('/subscriptions/', variables('subscriptionId'), '/providers/Microsoft.Web/locations/', variables('location'),'/managedApis/keyvault')]"
    },
    "resources": [
        {
            "type": "Microsoft.Web/connections",
            "apiVersion": "2016-06-01",
            "name": "[parameters('keyvaultName')]",
            "location": "[variables('location')]",
            "properties": {
                "displayName": "[parameters('keyvaultName')]",
                "customParameterValues": {
                },
                "api": {
                    "id": "[variables('keyvaultApiId')]"
                },
                "parameterValues": {
                    "token:TenantId": "[parameters('tenantId')]",
                    "token:grantType": "code",
                    "vaultName": "[parameters('keyvaultName')]"
                }
            }
        }
    ],
    "outputs": {
    }
}
